Accumulator |
HOME > Fin Tube Welding Machine > Accumulator |
|
| |

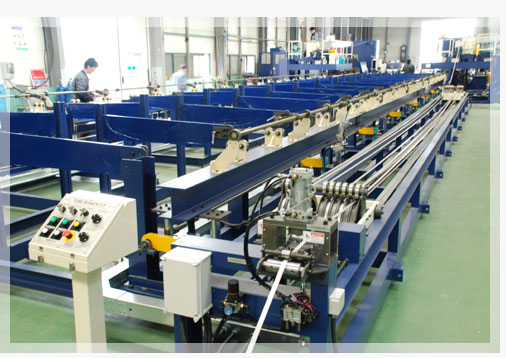

This system is for continuous fin feeding so as to
weld the tube without machine stop.
It supplies fin to main machine during coil exchanging process between 1st
and 2nd fin coiler automatically and it controls the tension of fin by tension
controller so as to get constant feeding of fin to the machine. |
| |
ⓐ Capability : About 250 meters
ⓑ Feeding speed : 0~120 m/min
ⓒ Fin feeding system by tension sensor
ⓓ Maximum fin height : 25.4㎜
ⓔ Fin tension controller : 100㎜/100RPM
ⓕ Tension control by air cylinder : 3~7 ㎏/㎠ |
| |
 |
 |
|
|
|
 |
|
|
|
|
